To aid users in the transfer of files between the Tri-Lab HPC centers, tools are available on each site data transfer cluster. The tools provide access to a remote site's HPSS (for file system to archive transfers) or to a remote site's data transfer cluster (for file system to file system transfers).
These are available for both restricted unclassified and classified networks, with specific tool names (i.e., executables) depending on the intended remote-site and data store.
Restricted Unclassified Tri-Lab Data Transfer Tools

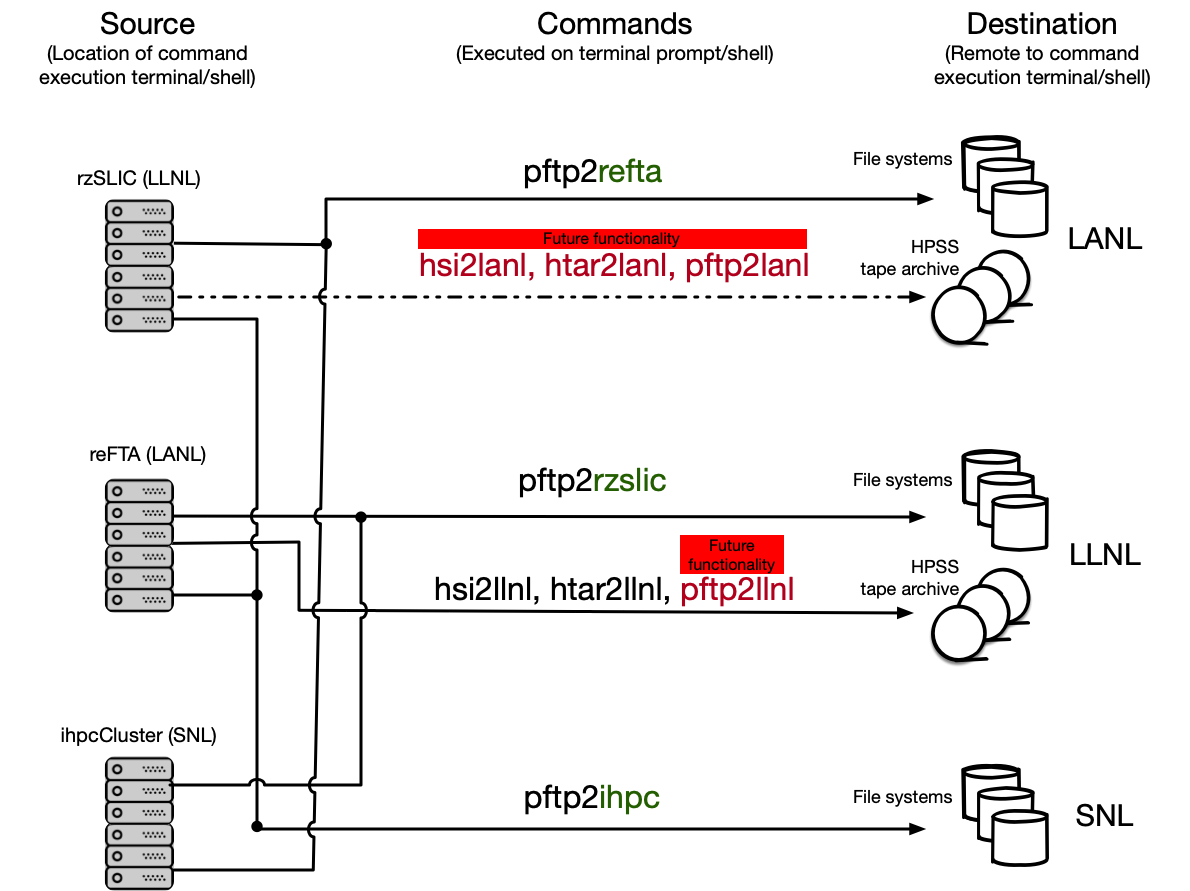

The diagram below lists the names of the tools available and illustrates the target connection.
| Originating Lab | Method | Receiving Lab |
|---|---|---|
| rzSlic (LLNL) | pftp2refta | LANL file systems |
| future functionality (hsi2lanl, htar2lanl, pftp2lanl) | LANL HPSS tape archive | |
| pftp2ihpc | SNL file systems | |
| reFTA (LANL) | pftp2rzslic | LLNL file systems |
| hsi2llnl, htar2llnl, future functionality (pftp2llnl) | LLNL HPSS tape archive | |
| pftp2ihpc | SNL file systems | |
| ihpcCluster (SNL) | pftp2refta | LANL file systems |
| pftp2rzslic | LLNL file systems |
Classified Tri-Lab Data Transfer Tools

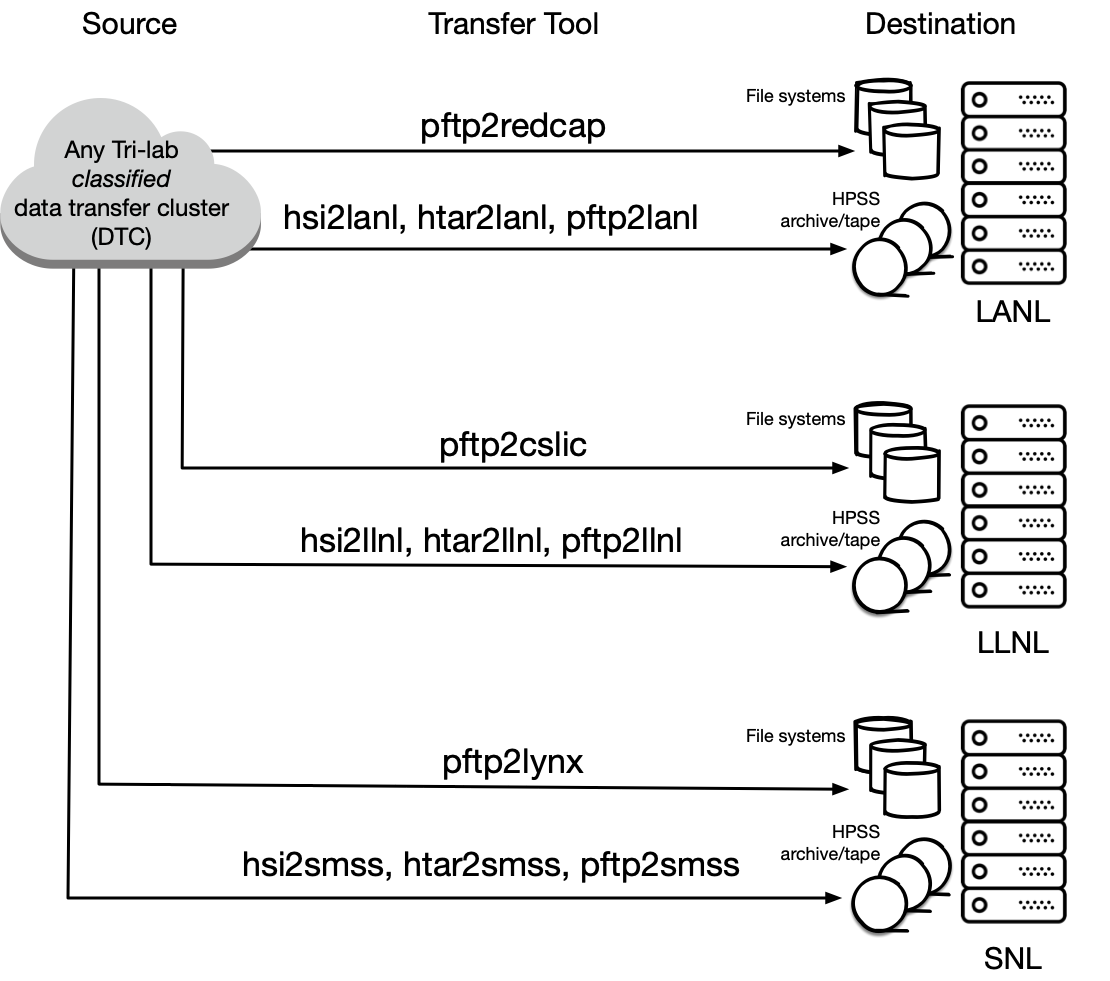

The diagram below lists the names of the tools available and illustrates the target connection.
| Originating Lab | Method | Receiving Lab |
|---|---|---|
| DISCOM Classified Network | pftp2redcap | LANL File Systems |
| hsi2lanl, htar2lanl, pftp2lanl | LANL HPSS | |
| pftp2cslic | LLNL File Systems | |
| hsi2llnl, htar2llnl, pftp2llnl | LLNL HPSS | |
| pftp2lynx | SNL File Systems | |
| hsi2smss, htar2smss, pftp2smss | SNL HPSS |
See https://hpc.llnl.gov/software/archival-storage-software for documentation on hsi, htar, and pftp.
