PSAAP IV Systems Summary

A full listing of LC systems can be found on our Compute Platforms page.

All LC systems run TOSS, the Tri-lab Operating System Stack.

Dane is a CTS (Commodity Technology System) class system and provides CPU resources.

Tioga and Tuolumne are ATS (Advanced Technology System) class and provide GPU resources. Applications that are not GPU-enabled should not be run on these systems. Tuolumne hardware is identical to that of El Capitan. Tioga hardware is considered EA (early access) and is one generation earlier than the El Capitan hardware. Detailed tutorial information can be found in the Using El Capitan Systems user guide.

Oslic is a resource reserved for moving files between LC file systems and HPSS archival storage.

Requesting Accounts—Sarape

Additional details for this section can be found on the New Account Setup page.

All PSAAP accounts for Tri-lab compute resources must be requested through the web-based SARAPE account request system at sarape.sandia.gov. Note SARAPE requires login. Participating PSAAP centers will have a processing agent who will have login access. Your university processing agent will assist you in submitting the initial request. Most fields are self-explanatory, but some useful hints are provided below:

• Step 2: Requestor's Manager's Info: this pertains to your PSAAP center's designated SARAPE processing agent - that is, the person within your center who authorizes your center's account requests.
• Step 3: Select the Lab where you would like an account and the available machines will appear. If you mouse-over the blue “i” icon next to the machine name, additional information about that machine will appear.
• Step 4: Additional information—For the required "Justification" box, please indicate, “This request is for PSAAP <name of center>, ” and what your work will pertain to.

Following completion of the form, your request will be reviewed by your center's SARAPE processing agent, and if approved, it will then be sent to the Lab(s) where you requested an account. The review and approval processes at each Lab vary, but averages about one week for US citizens. Non-US citizens are required to submit additional paperwork, initiated after the SARAPE request is received at the host site, and requires additional approvals. Processing time for these also varies, between one and three months.

Passwords/Tokens

Each laboratory has its own tokens and/or passwords for access to its resources. If you have accounts at multiple sites you will receive them separately. After accounts are approved and issued, each laboratory has its own process for providing/sending your password and/or token.

Training

All laboratories require users to take online cyber security training on an annual basis. If this required training is not completed, machine accounts will be deactivated.

Account Reauthorization

All three laboratories require annual reauthorization of existing accounts. You will be notified via email regarding this process when your account renewal date approaches.

Accessing LC Systems

Additional details for this section can be found on the Accessing LC Systems page.

Passwords, Authentication, and OTP Tokens

One-time Passwords (OTP)

• Single-use passwords are mandatory on all LC machines: classified and unclassified.
• Based upon a "two factor" authentication:
  • static, 4-8 character alphanumeric PIN for every user
  • 6-digit random number generated by an RSA SecureID token device
• OTP authentication is also used for other services:
  • Access to (some) internal LC web pages
  • Remote Access Services such as VPN (discussed later)

Problems?

• Under certain circumstances, an OTP server and your token may get out of sync. In such cases it is necessary to enter two consecutive token codes so the server can resynchronize itself. You may also need/want to change your PIN.
  • Both of these actions can be performed via the OTP web pages: otp.llnl.gov
• Contact the LC Hotline if problems persist, or for other token related issues/questions: (925) 422-4533 lc-support@llnl.gov

Access Methods

Command-Line Access Via SSH

• Secure Shell (SSH) is required for access to all LC systems.
• The main advantages of SSH are:
  • No clear text password goes over network
  • The data stream is encrypted
  • Use of RSA/DSA authentication between LC clusters
• Mac and Linux users:
  • SSH is included on Mac and Linux platforms
  • Can simply be used from a terminal window command line. Examples:

ssh joeuser@dane.llnl.gov
ssh -l joeuser tuolumne.llnl.gov

• Windows 10 provides an OpenSSH SSH client, which can be used from a Command Prompt window or PowerShell window. Note that you may need to specify the MAC (authentication) type. Examples:

ssh -m hmac-sha2-256 joeuser@dane.llnl.gov
ssh -m hmac-sha2-512 -l joeuser tuolumne.llnl.gov

To avoid the need to enter a MAC type each time, simply create a C:\Users\joeuser\.ssh\config file and add the following line to it:

MACs hmac-sha2-256,hmac-sha2-512

• May need to install an SSH app such as PuTTY. Searching the web will reveal other options.

• All production CZ systems can be accessed directly from the Internet.
• Simply use SSH (or for Windows, use your favorite SSH app) and connect to a cluster where you have an account.
• Authenticate with your LC username and CZ PIN + RSA OTP token.

Remote Desktop Access with RealVNC

RealVNC is a Virtual Network Computing (VNC) server which provides a securely authenticated and encrypted way for users to create and view a virtual desktop on an LC cluster (e.g., czvnc). Once logged into this desktop via RealVNC's VNC Viewer, users are able to open a terminal and ssh to other LC machines. Connections to LC machines via VNC Viewer persist even if no client is actually viewing it.

Setup and troubleshooting information can be found on the VNC: RealVNC (a.k.a. VNC Viewer) page.

Web Page Access

• The majority of LC's web pages at hpc.llnl.gov are publicly available over the Internet without the need for authentication.
• Web pages located on LC's Confluence (wiki), Jira (issue tracking), GitLab (repository hosting), and Orbit (jupyterhub launcher) require authentication with an LLNL Official Username (OUN) and the relevant zone PIN + OTP token.
• Additional web pages, including the MyLC portal, require the appropriate LC username and the relevant zone PIN + OTP token.

More Information

• A detailed SSH configuration for LC users can be found (internal website): https://dev.llnl.gov/security-access/ssh/cz_user/
• ssh man page

Cluster Login Nodes

• LC clusters have specific nodes dedicated to user login sessions.
• Login nodes are shared by multiple users.
• LC provides a "generic" login alias (cluster login) for each cluster. The cluster login automatically rotates between available login nodes for load balancing purposes.
• For example: dane.llnl.gov is the cluster login alias - which could be any of the physical login nodes.
• Users don't need to know (in most cases) the actual login node they are rotated onto - unless there are problems. Using the hostname command will indicate the actual login node name for support purposes.
• If the login node you are on is having problems, you can ssh directly to another one. To find the list of available login nodes, use the command: nodeattr -c login

VPN Remote Access Service

• Use of a Remote Access Service (usually VPN) is required if you are outside of the LLNL internal network, and wish to access:
  • Institutional network services (LITE, LTRAIN, email, etc.)
  • Livermore Computing Restricted Zone (RZ) compute resources
• Provided by the Cyber Security Program
• Not required for access to LC OCF Collaboration Zone (CZ) machines
• To request LLNL VPN access, download software and see setup instructions, go to: access.llnl.gov/vpn/.
• LLNL also offers a browser-based SSL VPN Web Portal:
  • The web portal should be used for Internet kiosks, such as at an airport or a conference, to access LLNL systems from off-site.
  • This service can be used for submitting your timecard or sending unencrypted email.
  • For details, see the link provided above.

Getting Help from the LC Hotline (for HPC)

We have dedicated teams of subject area experts available:

• LC Hotline: (925) 422-4531
• Technical Consultants | lc-hotline@llnl.gov
• Account Specialists | lc-support@llnl.gov
• LC Operations (24/7) | mfopers@llnl.gov

For more information: hpc.llnl.gov/#Contact

File Systems

Home Directories and Login Files

Home Directories

• LC user home directories are global to their network partition: 1 home directory system for the SCF, 1 for the OCF-CZ and 1 for the OCF-RZ.
• Naming scheme: /g/g#/user_name. Examples:
  • /g/g15/joeuser
• Backups:
  • Online: .snapshot directories - twice daily
  • Daily incremental
  • Monthly
  • Bi-annual offsite disaster recovery
  • See the Backups section for details
• NFS mounted:
  • Not recommended for parallel I/O
• Quota in effect - see the Quotas section for details.

LC's Login Files

• Your login shell is established when your LC account is initially setup. The usual login shells are supported:

  /bin/bash

  /bin/csh

  /bin/ksh

  /bin/sh

  /bin/tcsh

  /bin/zsh
• All LC users automatically receive a set of login files. These include:

.cshrc        .kshenv       .login        .profile
              .kshrc        .logout
.cshrc.linux  .kshrc.linux  .login.linux  .profile.linux

• The files which are "sourced" when you login depends upon your shell.
• Note for bash and zsh users: LC does not provide .bashrc, .bash_profile, .zprofile or .zshrc files at this time.

/usr/workspace File Systems

• LC provides 2 terabytes of NFS mounted file space for each user and group.
• Located under /usr/workspace/username and /usr/workspace/groupname
• /usr/workspace/username is accessible by the user only. /usr/workspace/groupname may be accessed by the group members.
• Similar to home directory:
  • Cross mounted from appropriate clusters
  • Not purged
  • Includes .snapshot directory for twice-daily online backups
  • Not intended for parallel I/O
• Different from home directory:
  • Not backed up

Temporary File Systems

• /tmp

  /usr/tmp

  /var/tmp
  • Different names for the same /tmp file system
  • Local to each individual node; very small compared to other temporary file systems
  • Note These are virtual file systems - use the node's local memory, which may impact the amount of memory left for the job running on the node.
  • Faster than NFS
  • No quota, no backups
  • Purged between batch jobs
• /l/ssd
• Job-based storage allocation
  • Some clusters, including Tuolumne, have node-local or near-node storage options. See the Using El Capitan Systems: File Systems and Rabbits page for details.

Parallel File Systems

Additional information can be found on the File Systems page and in the Using LC File Systems Guide.

• In a typical cluster, most nodes are compute nodes where programs actually run. A subset of the system's nodes are dedicated to serve as I/O nodes. I/O nodes are sometimes referred to as gateway nodes.
• I/O nodes are the interface to disk resources. All I/O performed on compute nodes is routed to the I/O nodes over the internal switch network (such as InfiniBand).
• The I/O nodes then send the I/O requests to storage servers over the SAN (Storage Area Network) which can be 10Gbit Ethernet or InfiniBand. The storage servers then perform the actual I/O to attached physical disk resources.

• Individual files are stored as a series of "blocks" that are striped across the disks of different storage servers. This permits concurrent access by a multi-task application when tasks read/write to different segments of a common file.
• Internally, file striping is set to a specific block size that is configurable. At LC, the most efficient use of parallel file systems is with large files. The use of many small files is not advised if performance is important.
• Parallelism:
  • Simultaneous reads/writes to non-overlapping regions of the same file by multiple tasks
  • Concurrent reads and writes to different files by multiple tasks
  • Concurrent reads/writes supported by MPI I/O and also file-system API, for Lustre or GPFS.
  • I/O will be serial if tasks attempt to use the same stripe of a file simultaneously.
• LC provides multiple parallel file systems (based on different file system software), including lustre, vast, and gpfs. These file systems are available under /p.

Parallel File Systems—Lustre

• Lustre is an open-source, parallel file system that supports many requirements of leadership class HPC simulation environments.
• To the user, appears as another mounted file system.
• Naming scheme: /p/lustre# for Linux. For example:

% bdf | grep lustre
172.19.1.165@o2ib100:172.19.1.    4.9P   1.1P   3.9P  22%  /p/lustre3
172.19.3.1@o2ib600:172.19.3.2@     15P   3.8P    12P  25%  /p/lustre2
172.19.3.98@o2ib600:172.19.3.9     15P   622T    15P   5%  /p/lustre1

• LC's Lustre parallel file systems are usually mounted by more than one Linux cluster.
• No backups
• /p/lustre# enforces user-based quotas and is NOT subject to purging
• For additional information also see: wiki.lustre.org
• Dane and Tioga have access to /p/lustre1 and /p/lustre2
• Tuolumne has access to /p/lustre5
• Oslic has access to all parallel file systems.

Parallel File Systems—Vast

• VAST is a flash-based file system that provides NFS-like performance to parallel HPC applications.
• Naming scheme: /p/vast1
• VAST is mounted on most LC CZ clusters.
• No backups
• /p/vast1 enforces directory-based quotas and is NOT subject to purging
• Dane, Tioga, Tuolumne, and Oslic all have access to /p/vast1

Archival HPSS Storage

• High Performance Storage System (HPSS) archival storage is available on the OCF.
  • Provides disk/tape archive storage in the petabyte range. Both capacity and performance are continually increasing to keep up with the ever increasing user demand.
  • GigE connectivity to all production clusters
• Primary components:
  • Server machines
  • RAID disk cache
  • Magnetic tape libraries
  • Jumbo frame GigE network
• FTP client on LC production machines defaults to an enhanced parallel HPSS FTP client
• No back up, no purge

Access Methods and Usage

• The HPSS system is named storage.llnl.gov on the OCF.
• All LC users automatically receive an HPSS storage account with their regular production machine account.
• Data Transfer Tools: The more commonly used ones are simply listed here and described in more detail in the File Transfer and Sharing section that follows later.
  • Hopper: hpc.llnl.gov/software/data-management-tools/using-hopper
  • FTP/PFTP: hpc.llnl.gov/documentation/user-guides/using-ftp-file-transfer-protocol
  • NFT: hpc.llnl.gov/documentation/user-guides/using-lc-file-systems/using-nft
  • HTAR: hpc.llnl.gov/documentation/user-guides/using-htar-hpss-tape-archiver
  • Tri-lab high bandwidth file transfers over SecureNet (see the File Transfer and Sharing section)
  • Note ssh/scp/sftp to storage are not supported.
• Quotas:
  • Based on a user's annual growth in HPSS file space
  • OCF yearly quota (FY25): 300 TB
  • For details see Technical Bulletin #572: FY25 HPSS Yearly Quotas
• How much storage am I using? The aquota command (which can only be run on oslic) provides this information. For example:

oslic5% kinit
[authenticate here]

oslic5% aquota
Welcome to HPSS Quota Server oslici.llnl.gov

aq> show allowance

Pool Name                 Pool Manager  Allowance
------------------------  ------------  ---------------
lcreserve                 lc-hotline             0.0 B
default                   lc-hotline             1.5 TB
   Total                                         1.5 TB

From 10/01/2019 through 02/06/2020:
     5 files created.
     46.8 GB of data used. 3.12% of total.
     Avg. Per Month:  11.1 GB

Total Data:      85.1 TB
Total Files:     2127240

aq>

Usage notes:

• Currently, you must be logged into oslic to use this command.
• Use the aquota help subcommand for additional options.
• You may need to authenticate with the kinit command first.

Additional Information

• HPSS Home Page: www.hpss-collaboration.org

/usr/gapps, /usr/gdata File Systems

• LC provides shared, collaborative, NFS file space for user developed and supported applications and data on LC systems:  /usr/gapps, /collab/usr/gapps/, /usr/gdata, /collab/usr/gdata

• Unlike your home directory, these file systems can be used (with approval) to share file space within a group or even the world.
• For convenience, OCF-RZ users can use /collab/usr/gapps and /collab/usr/gdata to share files with OCF-CZ users.
• Backups:
  • Online: .snapshot directories.
  • Daily incremental
  • Monthly
  • Bi-annual offsite disaster recovery
  • See the Backups section for details.
• Never purged
• Multiple architectures are handled through the $SYS_TYPE variable:
  • Every LC machine sets this environment variable to a specific string that matches its architecture. For example:

toss_4_x86_64_ib_cray
toss_4_x86_64_ib
toss_4_x86_64

• Versions of code built for specific architectures are placed in subdirectories named to match $SYS_TYPE strings
• User scripts can select the appropriate code versions based upon the $SYS_TYPE setting. For example: cd /usr/gapps/myApp/$SYS_TYPE/bin

• Requesting a directory within /usr/gapps: submit the LC USR_GAPPS form to create/change/delete a directory.
• Sharing files and directories in your /usr/gapps directory with a group:
  • Create and manage UNIX groups: lc-idm.llnl.gov
  • Then use UNIX permissions to permit group sharing
• For additional information see the /usr/gapps web page

Quotas

• The default home directory quota is 24 GB per user. This quota will not be increased.
• Other file systems can have quotas. The parallel file systems, in particular, have a 3-tier quota system:

• To check usage and limits: quota -v
• Example:

% quota -v

Disk quotas for joeuser:
Filesystem     used   quota  limit    timeleft  files  quota  limit    timeleft
/g/g0          1.1G   24.0G  24.0G              3.9K   n/a    n/a
/g/g10         -0-    24.0G  24.0G              -0-    n/a    n/a
...
/g/g92         -0-    24.0G  24.0G              -0-    n/a    n/a
/g/g99         -0-    24.0G  24.0G              -0-    n/a    n/a
/usr/gapps     -0-    n/a    n/a                -0-    n/a    n/a
/collab/usr/gapps
               -0-    n/a    n/a                -0-    n/a    n/a
/usr/give      -0-    25.0G  25.0G              -0-    n/a    n/a
/usr/global    -0-    32.0G  32.0G              -0-    n/a    n/a
/collab/usr/global
               -0-    32.0G  32.0G              -0-    n/a    n/a
/usr/workspace/wsa
               -0-    n/a    n/a                -0-    n/a    n/a
/usr/workspace/wsb
               -0-    n/a    n/a                -0-    n/a    n/a
/p/lustre1     24.5K  18.0T  20.0T              0.0K   900.0K 1.0M
/p/lustre2     24.5K  18.0T  20.0T              0.0K   900.0K 1.0M

• Requests for additional disk space should be made via this form.
• Exceeding quota:
  • Warning appears in login messages if usage over 90% quota
  • Heed quota warnings - risk of data loss if quota is exceeded!
• HPSS archival storage: quotas in effect as discussed in Archival HPSS Storage section.

Purge Policies

• When file systems become full, performance can be significantly degraded. Because of this, LC maintains policies for purging temporary file systems.
• The following temporary file systems are subject to purging:

/tmp
/usr/tmp
/var/tmp
/nfs/tmp#

• The /p parallel file systems are NOT subject to purging since they enforce quotas.
• When are files purged?
  • /tmp, /var/tmp, /usr/tmp: node-local temporary file space is purged daily and/or in between batch jobs.
• Files in temporary file systems are not backed up
• Don't forget: tmp in the name means temporary!

Backups

Online .snapshot Directories

• User home directories, /usr/workspace, /usr/gapps and /usr/gdata have a special, online directory for regular, automatic backups.
• "Hidden" .snapshot subdirectory
  • You can cd .snapshot
  • Contains multiple subdirectories, each containing a full backup and a timestamp when the backup was created.
  • .snapshot is read-only directory

Livermore Computing System Backups

• LC performs regular backups of the following file systems:
  • /g/g#: User home directories
  • /usr/gapps, /usr/gdata: User application and data directories
  • /usr/local, /usr/global: LC developed or maintained application directories
  • Atlassian Tools: Jira, Confluence, etc.
  • GItlab
• Daily backups of new or changed files
• Full monthly backup of all files. Retained onsite for 6 months.
• Disaster recovery backups:
  • Performed every 6 months
  • Data is stored offsite at the Nevada Test Facility
  • Retained for 2 years
• For detailed information on LC backups, see the internal wiki document located at: lc.llnl.gov/confluence/display/LCBackups/LC+Backups+Home (requires authentication)

Note Temporary and parallel file systems are not backed up:

• /tmp, /var/tmp, /usr/tmp
• /p/lustre#
• /p/vast#

Archival HPSS Storage

• Users are responsible for backing up all other data they wish to preserve, particularly any files residing in temporary file systems.
• The preferred location for these backups is the archival HPSS storage system.
• See the Archival HPSS Storage section for details.

File Transfer and Sharing

File Transfer Tools

• There are a number of ways to transfer files —depending upon what you want to do.
• hopper: A powerful, interactive, cross-platform tool that allows users to transfer and manipulate files and directories by means of a graphical user interface. Users can connect to and manage resources using most of the major file transfer protocols, including FTP, SFTP, SSH, NFT, and HTAR. See the hopper web pages (hpc.llnl.gov/software/data-management-tools/using-hopper), hopper man page or use the hopper -readme command for more information.
• ftp: Is available for file transfer between LC machines. The ftp client at LC is an optimized parallel ftp implementation. It can be used to transfer files with machines outside LLNL if the command originates from an LLNL machine and the foreign host will permit it. FTP to LC machines from outside LLNL is not permitted unless the user is connected via an appropriate Remote Access service such as OTS or VPN. Documentation is available via the ftp man page or the FTP Usage Guide (hpc.llnl.gov/documentation/user-guides/using-ftp-file-transfer-protocol)
• scp: (secure copy) is available on all LC machines. Example:

  scp thisfile user@host2:thatfile
• sftp: Performs ftp-like operations over encrypted ssh.
• MyLC: Livermore Computing's user portal provides a mechanism for transferring files to/from your desktop machine and your home directory on an LC machine. See the "utilities" tab. Available at mylc.llnl.gov
• nft: (Network File Transfer) is LC's utility for persistent file transfer with job tracking. This is a command line utility that assumes transfers with storage and has a specific syntax. Documentation is available via its man page or the NFT Reference Manual (hpc.llnl.gov/documentation/user-guides/using-lc-file-systems/using-nft).
• htar: Is highly optimized for creation of archive files directly into HPSS, without having to go through the intermediate step of first creating the archive file on local disk storage, and then copying the archive file to HPSS via some other process such as ftp. The program uses multiple threads and a sophisticated buffering scheme in order to package member files into in-memory buffers, while making use of the high-speed network striping capabilities of HPSS. Syntax resembles that of the UNIX tar command. Documentation is available via its man page or the HTAR Reference Manual (hpc.llnl.gov/documentation/user-guides/using-htar-hpss-tape-archiver).
• hsi: Hierarchical Storage Interface. HSI is a utility that communicates with HPSS via a user- friendly interface that makes it easy to transfer files and manipulate files and directories using familiar UNIX-style commands. HSI supports recursion for most commands as well as CSH-style support for wildcard patterns and interactive command line and history mechanisms. Documentation is available via its man page.
• Tri-lab high bandwidth file transfers over SecureNet:
  • All three Labs support wrapper scripts for enhanced data transfer between sites - classified side only.
  • Three different protocols can be used: hsi, htar and pftp.
  • Transfers can be from host to storage or host to host
  • Commands are given names that are self-explanatory - see the accompanying image at right.
  • At LLNL, these scripts should already be in your path
  • For additional information please see aces.sandia.gov/tri_lab_home.html#file_xfer (requires authentication)

System Configuration and Status Information

• Before you attempt to run your parallel application, it is important to know a few details about the way the system is configured. This is especially true at LC where every system is configured differently and where things change frequently.
• It is also useful to know the status of the machines you intend on using. Are they available or down for maintenance?
• System configuration and status information for all LC systems is readily available from the LC Homepage and the MyLC Portal.

• LC Homepage: hpc.llnl.gov ==> Hardware ==> Compute Platforms
  • Direct link: hpc.llnl.gov/hardware/compute-platforms
  • All production systems appear in a summary table showing basic hardware information.
  • Clicking on a machine's name will take you to a page of detailed hardware and configuration information for that machine.

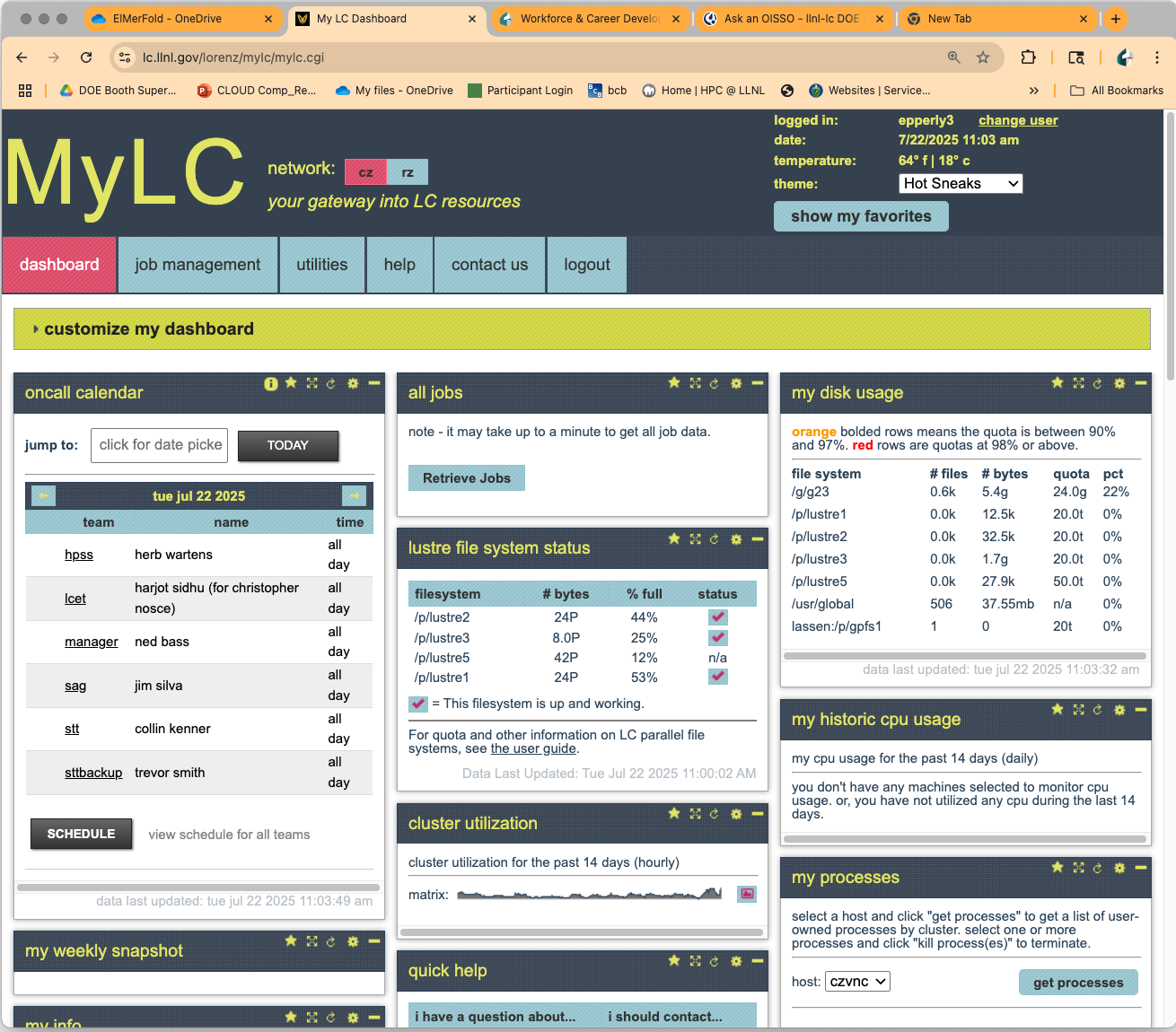

• MyLC Portal: mylc.llnl.gov
  • Click on a machine name in the "machine status" portlet, or the "my accounts" portlet.
  • Then select the "details", "topology" and/or "job limits" tabs for detailed hardware and configuration information.
• LC Tutorials:
  • Located on the LC Homepage under the "Training" menu.
  • Direct link: hpc.llnl.gov/documentation/tutorials
• Systems Summary Tables:
  • LC Systems Summary: hpc.llnl.gov/sites/default/files/LC-systems-summary.pdf. Concise 1-page summary of LC production systems.

System Status Information

• LC Hardware page: hpc.llnl.gov/hardware
  • Unclassified systems only
• MyLC Portal:
  • mylc.llnl.gov
  • Several portlets provide system status information:
    • machine status
    • login node status
    • parallel file system status
    • enclave status
• LC Notice Emails:
  • Provide the most timely status information for system maintenance, problems, and system changes/updates
  • All LC users are automatically subscribed. All emails begin with the subject "LC Notice -" (which can be filtered by an email client).
• Login banner & news items - always displayed immediately after logging in
  • Login banner includes basic configuration information, announcements and news items. Example login banner HERE.
  • News items (unread) appear at the bottom of the login banner. For usage, type news -h.
• Direct links for systems and file systems status pages:

Examples



Software Overview

TOSS Operating System

• TOSS = Tri-Laboratory Operating System Stack
• Based on Red Hat Enterprise Linux (RHEL) with modifications to support targeted HPC hardware and cluster computing
• Used by most LC (and Tri-lab) production Linux clusters
• The primary components of TOSS include:
  • RHEL kernel optimized for large scale cluster computing
  • OpenFabrics Enterprise Distribution InfiniBand software stack including MVAPICH and OpenMPI libraries
  • Slurm workload manager
  • Integrated Lustre and Panasas parallel file system software
  • Scalable cluster administration tools
  • Cluster monitoring tools
  • GNU, C, C++ and Fortran90 compilers (GNU, Intel, PGI)
  • Testing software framework for hardware and operating system validation
• See Redhat's documentation for details on the RHEL kernel.
• Version information for LC's clusters:
  • TOSS: distro_version or cat /etc/toss-release
  • Redhat: cat /etc/redhat-release

Software Lists, Documentation, and Downloads

The table below lists and provides links to the majority of software available through LC and related organizations, more information can be found on the LC Software page.

Modules

• Most LC clusters support Lmod modules for software packaging:
  • Provide a convenient, uniform way to select among multiple versions of software installed on LC systems.
  • Many LC software applications require that you load a particular "package" in order to use the software.
• Using Modules:

List available modules:     module avail
Load a module:              module add|load modulefile
Unload a module:            module rm|unload modulefile
List loaded modules:        module list
Read module help info:      module
Display module contents:    module display|show modulefile

• For more information see:
  • LC modules documentation
  • TACC documentation: LMOD: ENVIRONMENTAL MODULES SYSTEM
  • The module man page

Development Tools - Confluence, JIRA, GitLab, Orbit, etc.

• LC supports a suite of web-based collaboration tools:
  • Confluence: wiki tool, used for documentation, collaboration, knowledge sharing, file sharing, mockups, diagrams... anything you can put on a webpage.
  • JIRA: issue tracking and project management system
  • GitLab: Git repository hosting, Continuous Integration, Issue tracking
  • Orbit: JupyterHub and Jupyter Notebook launching interface.
• All collaboration tools:
  • Are based on LC usernames / groups and are intended to foster collaboration between LC users working on HPC projects.
  • Require authentication with your LLNL OUN and RSA PIN + token
  • Have a User Guide for usage information
• Locations:

Spack Package Manager

• Spack is a flexible package manager for HPC
• Easy to download and install. For example:

% git clone https://github.com/spack/spack
% . spack/share/spack/setup-env.csh (or setup-env.sh)

• There is an increasing number of software packages available for installation with Spack. Many open source contributions from the international community.
• To view available packages: spack list
• Then, to install a desired package: spack install packagename
• Additional Spack features:
  • Allows installations to be customized. Users can specify the version, build compiler, compile-time options, and cross-compile platform, all on the command line.
  • Allows dependencies of a particular installation to be customized extensively.
  • Non-destructive installs - Spack installs every unique package/dependency configuration into its own prefix, so new installs will not break existing ones.
  • Creation of packages is made easy.
• Extensive documentation is available at: spack.readthedocs.io

Compilers

• Details on the available compilers can be found on the Compilers page.
• Tuolumne and Tioga users should see the Using El Capitan Systems: Compilers and User Environment page.
• For details on the MPI parallel compiler commands, see hpc-tutorials.llnl.gov/mpi

Compiler Versions and Defaults

• LC maintains multiple versions of each compiler.
• The Modules module avail command is used to list available compilers and versions:

    module avail intel

    module avail gcc

    module avail pgi

    module avail clang

• Versions: to determine the actual version you are using, issue the compiler invocation command with its "version" option. For example:

• To use an alternate version issue the Modules command: module load module-name

Compiler Options

• Each compiler has hundreds of options that determine what the compiler does and how it behaves.
• The options used by one compiler mostly differ from other compilers.
• Additionally, compilers have different default options.
• An in-depth discussion of compiler options is beyond the scope of this tutorial.
• See the compiler's documentation, man pages, and/or -help or --help option for details.

Compiler Documentation

• Intel and PGI: compiler docs are included in the /opt/compilername directory. Otherwise, see Intel or PGI web pages.
• GNU: see the web pages at gcc.gnu.org/
• LLVM/Clang: see the web pages at clang.llvm.org/docs/
• Man pages may/may not be available

Debugging Tools

A full listing of available tools can be found on the Development Environment Software page. Tuolumne and Tioga users should see the Debugging Tools page in the Using El Capitan Systems guide.

TotalView

• TotalView is probably the most widely used debugger for parallel programs. It can be used with C/C++ and Fortran programs and supports all common forms of parallelism, including pthreads, openMP, MPI, accelerators and GPUs.
• Starting TotalView for serial codes: simply issue the command:

        totalview myprog

• Starting TotalView for interactive parallel jobs:
  • Some special command line options are required to run a parallel job through TotalView under Slurm. You need to run srun under TotalView, and then specify the -a flag followed by 1) srun options, 2) your program, and 3) your program flags (in that order). The general syntax is: totalview srun -a -n #processes -p pdebug myprog [prog args]
  • To debug an already running interactive parallel job, simply issue the totalview command and then attach to the srun process that started the job.
• Documentation:
  • /software/development-environment-software/totalview-debugger
  • link to video tutorial per Don
  • Vendor website: www.roguewave.com/

DDT

• DDT stands for "Distributed Debugging Tool", a product of Allinea Software Ltd.
• DDT is a comprehensive graphical debugger designed specifically for debugging complex parallel codes. It is supported on a variety of platforms for C/C++ and Fortran. It is able to be used to debug multi-process MPI programs, and multi-threaded programs, including OpenMP.
• Currently, LC has a limited number of fixed and floating licenses.
• Usage information: see LC's DDT Quick Start information located at: hpc.llnl.gov/software/development-environment-software/allinea-ddt
• Documentation: see the vendor website: www.allinea.com

STAT - Stack Trace Analysis Tool

• The Stack Trace Analysis Tool gathers and merges stack traces from a parallel application's processes.
• STAT is particularly useful for debugging hung programs.
• It produces call graphs: 2D spatial and 3D spatial-temporal
  • The 2D spatial call prefix tree represents a single snapshot of the entire application (see image).
  • The 3D spatial-temporal call prefix tree represents a series of snapshots from the application taken over time.
• More information: see the STAT web page at: hpc.llnl.gov/software/development-environment-software/stat-stack-trace-analysis-tool

Other Debuggers

• Several other common debuggers are available on LC Linux clusters, though they are not recommended for parallel programs when compared to TotalView and DDT.
• PGDBG: the Portland Group Compiler debugger. Documentation: www.pgroup.com/products/pgdbg.htm
• GDB: GNU GDB debugger, a command-line, text-based, single process debugger. Documentation: www.gnu.org/software/gdb
• DDD: GNU DDD debugger is a graphical front-end for command-line debuggers such as GDB, DBX, WDB, Ladebug, JDB, XDB, the Perl debugger, the bash debugger, or the Python debugger. Documentation: www.gnu.org/software/ddd

Performance Analysis Tools

A full listing of available tools can be found on the Development Environment Software page. Tuolumne and Tioga users should see the Performance Tools page in the Using El Capitan Systems guide.

Memory Correctness Tools

Memcheck: Valgrind's Memcheck tool detects a comprehensive set of memory errors, including reads and writes of unallocated or freed memory and memory leaks.

TotalView: Allows you to stop execution when heap API problems occur, list memory leaks, paint allocated and deallocated blocks, identify dangling pointers, hold onto deallocated memory, graphically browse the heap, identify the source line and stack backtrace of an allocation or deallocation, summarize heap use by routine, filter and dump heap information, and review memory usage by process or by library.

memP: The memP tool provides heap profiling through the generation of two reports: a summary of the heap high-water-mark across all processes in a parallel job as well as a detailed task-specific report that provides a snapshot of the heap memory currently in use, including the amount allocated at specific call sites.

Intel Inspector: Primarily a thread correctness tool, but memory debugging features are included.

Profiling, Tracing, and Performance Analysis

Open|SpeedShop: Open|SpeedShop is a comprehensive performance tool set with a unified look and feel that covers most important performance analysis steps. It offers various different interfaces, including a flexible GUI, a scripting interface, and a Python class. Supported experiments include profiling using PC sampling, inclusive and exclusive execution time analysis, hardware counter support, as well as MPI, I/O, and floating point exception tracing. All analysis is applied on unmodified binaries and can be used on codes with MPI and/or thread parallelism.

TAU: TAU is a robust profiling and tracing tool from the University of Oregon that includes support for MPI and OpenMP. TAU provides an instrumentation API, but source code can also be automatically instrumented and there is support for dynamic instrumentation as well. Experienced users have applied the tool with good results at LLNL. TAU can be configured with many feature combinations.

HPCToolkit: HPCToolkit is an integrated suite of tools for measurement and analysis of program performance on computers ranging from multicore desktop systems to the largest supercomputers. It uses low overhead statistical sampling of timers and hardware performance counters to collect accurate measurements of a program's work, resource consumption, and inefficiency and attributes them to the full calling context in which they occur. HPCToolkit works with C/C++/Fortran applications that are either statically or dynamically linked. It supports measurement and analysis of serial codes, threaded codes (pthreads, OpenMP), MPI, and hybrid (MPI + threads) parallel codes.

mpiP: A lightweight MPI profiling library that provides time spent in MPI functions by callsite and stacktrace. This tool is developed and maintained at LLNL, so support and modifications can be quickly addressed. New run-time functionality can be used to generate mpiP data without relinking through the srun-mpip and poe-mpip scripts on Linux and AIX systems.

gprof: Displays call graph profile data. The gprof command is useful in identifying how a program consumes CPU resources. Gprof does simple function profiling and requires that the code be built and linked with -pg. For parallel programs, in order to get a unique output file for each process, you will need to set the undocumented environment variable GMON_OUT_PREFIX to some non-null string. For example: setenv GMON_OUT_PREFIX 'gmon.out.'`/bin/uname -n`

pgprof: PGI profiler - pgprof is a tool which analyzes data generated during execution of specially compiled programs. This information can be used to identify which portions of a program will benefit the most from performance tuning.

PAPI: Portable hardware performance counter library.

PapiEx: A PAPI-based performance profiler that measures hardware performance events of an application without having to instrument the application.

VTune Amplifier: The Intel VTune Amplifier tool is a performance analysis tool for finding hotspots in serial and multithreaded codes. Note the installation on LC machines does not include the advanced hardware analysis capabilities.

Intel Profiler: The Intel Profiler tool is built into the Intel compiler along with a simple GUI to display the collected results.

Vampir / Vampirtrace: Full featured trace file visualizer and library for generating trace files for parallel programs.

PART II: Running Jobs

Basic Concepts

Jobs

Simple Definition

• To a user, a job can be simply described as a request for compute resources needed to perform computational work.
• Jobs typically specify what resources are needed, such as:
  • Which cluster
  • Number of nodes
  • Length of time
  • Queue to use
  • Account to charge
• Jobs are typically submitted to the Workload Manager by means of a job script. Job scripts are discussed in the Building a Job Script section.

Interactive vs Batch

Batch

• Refers to jobs that you submit to the workload manager via a job script.
• After submitting, you typically wait for your job to be scheduled and then run; typically no command line interacting via stdin, stdout.
• The vast majority of jobs on LC clusters are batch jobs.
• Most of the remaining material in this tutorial applies to batch jobs.

Interactive

• Refers to jobs that you launch and interact with real-time from the command line (stdin, stdout).
• Do not require a job script
• Most often (but not always) used for small, short, debugging / testing runs.
• Interactive jobs are discussed further in the: Interactive Jobs section.

Serial vs Parallel

• Parallel jobs can range in size from a single node (multi-core) to the full system.
• All but a few of LC's production clusters are intended to be used for parallel jobs.
• Serial jobs by definition require only one core on a node.
• Because running serial jobs on parallel clusters would waste compute resources, LC provides several clusters where serial jobs can be run without wasting compute resources.

Queues and Queue Limits

Queues (also called Pools and/or Partitions)

• The majority of nodes on LC's production systems are designated as compute nodes.
• Compute nodes are typically divided into queues / pools / partitions based upon how they should be used.

Batch queue

• Typically comprises most of the compute nodes on a system
• Named pbatch
• Intended for production work
• Configured on all but a few LC systems

Interactive/debug queue

• Typically comprises a small number of the compute nodes on a system
• Named pdebug
• Intended for small, short-running interactive and debugging work (not production)
• Configured on most LC systems

OTHER QUEUES

• There may be other queues on some machines, such as the viz, pviz, pgpu, etc.
• There are defined limits for each queue, the most important being:
  • Max/min number of nodes permitted for a job
  • Max wall-clock time - how long a job is permitted to run
  • Max number of simultaneous running jobs or max number of nodes permitted across all running jobs.
• No two LC systems have the same queue limits.
• Queue limits can and do change!
• Notes:
  • To run jobs that exceed queue limits, users can request Dedicated Application Time (DAT).
  • Login nodes are a shared, limited resource not intended for production work. They are not associated with any queue.

How Do I Find Out What the Queue Limits Are?

• The easiest way to determine the queue configuration and limits for a particular machine is to login to that machine and use the command:


  news job.lim.dane

• This is the same information available in the LC "Machine Status" web pages: (LC internal). Click on the machine name of interest and then look for the "Job Limits" link.

  • OCF-CZ: lc.llnl.gov/cgi-bin/lccgi/customstatus.cgi
• It is also available on the "MyLC" web pages. Just click on any machine name in the "machine status" or "my accounts" portlets. Then select the "job limits" tab.
  • OCF-CZ: mylc.llnl.gov
• For convenience, the queue limits for all of LC's production clusters are summarized below, as of June 2019. All information is subject to change.

Banks

 Bank Hierarchy

• In order to run in a queue, whether batch or interactive on a cluster, you need to have two things:
  • Login account: your username appears in /etc/passwd
  • LC bank: your username is associated with a valid LC bank

Basic Functions

Building a Job Script

The Basics

• Users submit jobs to the Workload Manager for scheduling by means of a job script.
• A job script is a plain text file that you create with your favorite editor.
• Job scripts can include any/all of the following:
  • Commands, directives and syntax specific to a given batch system
  • Shell scripting
  • References to environment variables
  • Names of executable(s) to run
  • Comment lines and white space
• Simple Slurm job control scripts appear below:

#!/bin/tcsh
##### These lines are for Slurm
#SBATCH -N 16
#SBATCH -J parSolve34
#SBATCH -t 2:00:00
#SBATCH -p pbatch
#SBATCH --mail-type=ALL
#SBATCH -A myAccount
#SBATCH -o /p/luster1/joeuser/par_solve/myjob.out

##### These are shell commands
date
cd /p/luster1/joeuser/par_solve
##### Launch parallel job using srun
srun -n128 a.out
echo 'Done'

Options

• There are a wide variety of options that can be used in your job script. Some of the more common/useful options are shown below.

#SBATCH -A account

#SBATCH --begin=time

#SBATCH -c #

#SBATCH -d list

#SBATCH -D path

#SBATCH -e filename

#SBATCH --export=list

#SBATCH --license=filesystem

#SBATCH -H

#SBATCH -i filename

#SBATCH -J name

default

#SBATCH --mail-type=type
(begin, end, fail, requeue, all)

#SBATCH -N #

#SBATCH -n #
#SBATCH --ntasks-per-node=#
#SBATCH --tasks-per-node=#

#SBATCH --nice=value

#SBATCH -o filename

#SBATCH -p partition

#SBATCH --qos=exempt
#SBATCH --qos=expedite
#SBATCH --qos=standby

#SBATCH --requeue
#SBATCH --no-requeue

#SBATCH --signal=14@120
#SBATCH --signal=SIGHUP@2:00

#SBATCH -t time

#SBATCH --export=ALL

Submitting Jobs

Job Submission Commands

• The sbatch commands are used to submit your job script to the Workload Manager. Upon successful submission, the job's ID is returned and it is spooled for execution.
• These commands accept the same options as the #SBATCH tokens in a batch script.
• Examples:


  Slurm
  % sbatch myjobscript Submitted batch job 645133 % sbatch -p pdebug -A physics myjobscript Submitted batch job 645134

Usage Notes

• sbatch is available on LC Slurm clusters:
  • Use sbatch to submit job scripts with #SBATCH syntax
• After you submit your job script, changes to the contents of the script file will have no effect on your job because it has already been spooled to system file space.
• Users may submit and queue as many jobs as they like, up to a reasonable configuration defined limit. The actual number of running jobs per user is usually a lower limit, however. These limits can vary between machines.
• The default directory is where you submit your job from. If you need to be in another directory, then you will need to explicitly cd to, or set the working directory with an #SBATCH option.

Monitoring Jobs

checkjob

• Displays detailed job state information and diagnostic output for a selected job.
• Detailed information is available for queued, blocked, active, and recently completed jobs.
• The checkjob command is probably the most useful user command for troubleshooting your job, especially if used with the -v and -v -v flags.
• Common/useful options:
  • -v shows additional information
  • -v -v shows additional information plus job script (if available)
• Checkjob man page HERE
• Examples below:

% checkjob 650263
job 650263

AName: vasp_NEB_inter_midbot_t2
State: Running
Creds:  user:vuiuey2  group:vuiuey2  account:ioncond  class:pbatch  qos:normal
WallTime:  01:53:43 of 06:00:00
SubmitTime: Thu May 11 06:50:30
  (Time Queued Total:  1:49:46   Eligible:  1:49:46)

StartTime: Thu May 11 08:40:16
Total Requested Tasks:  1
Total Requested Nodes:  10
Partition: pbatch
Dedicated Resources Per Task: luster1
Node Access: SINGLEJOB
NodeCount: 10

Allocated Nodes:
dane[52,362-363,398-399,444-445,2648-2650]

SystemID:  dane
SystemJID: 650263
IWD:        /p/luster1/vuiuey2/calculations/radiation/V_Br/NEB_inter_midbot_t2
Executable: /p/luster1/vuiuey2/calculations/radiation/V_Br/NEB_inter_midbot_t2/psub.vasp

User Specified Partition List:    dane
System Available Partition List:  dane
Partition List: dane
StartPriority: 1000031

Banks and Usage Information

Overview

• As discussed previously, in order to run on a cluster, you need to have two things:
  • Login account: your username appears in /etc/passwd
  • Bank: your username is associated with a valid bank
• Banks are hierarchical and determine the percentage of machine resources (cycles) you are entitled to receive, as discussed in the Banks section of this tutorial.
• Every cluster has its own unique bank structure. To view the entire bank hierarchy, use the command:

mshare -t root

• You may have an allocation in more than one bank.
• If you belong to more than one bank, your banks are not necessarily shared across all of the clusters where you have a login account.

• You have a default bank on each cluster, which may/may not be the same on other clusters.

mshare

• Displays bank structure, allocations and usage information
• If you want to see your available banks and usage stats for a cluster, this is the best command to use.
• This is also the best command for viewing your place within the entire bank hierarchy.
• mshare man page HERE

sreport

• Reports usage information for a cluster, bank, individual, date range, and more.
• sreport man page HERE
• Example: show usage by user (in hours) for the alliance bank on the cluster cab between the dates shown.

% sreport -t hours cluster AccountUtilizationByUser accounts=alliance cluster=cab  start=2/1/12 end=3/1/12

--------------------------------------------------------------------------------
Cluster/Account/User Utilization 2012-02-01T00:00:00 - 2012-02-29T23:59:59 (2505600 secs)
Time reported in CPU Hours
--------------------------------------------------------------------------------
  Cluster         Account     Login     Proper Name       Used
--------- --------------- --------- --------------- ----------
     cab         alliance                              2739237
     cab          caltech                               500080
     cab          caltech   br4e33t        Joe User     500076
     cab          caltech   sthhhd6       Bill User          4
     cab         michigan                               844339
     cab         michigan  dhat67s        Mary User       261
     cab         michigan  hetyyr2         Sam User     38552
...
...

Output Files

Defaults

• The batch output file is named slurm-jobid.out
• stdout and stderr are combined into the same batch output file.
• Will be written to the directory where you issued the sbatch command.
• The name of a job has no effect on the name of the output file.
• If an output file with the same name already exists, new output will append to it.

Estimating When Your Job Will Start

• One of the most frequently asked questions is "When will my job start?".
• Because job scheduling is dynamic, and can change at any moment, picking an exact time is often impossible.
• There are a couple ways that you can get an estimate on when your job will start, based on the current situation.
• The easiest way is to use the checkjob command. Look for the StartTime line - if it exists. Note that not all jobs will show a start time.
• For example:

% checkjob 830063
job 830063

AName: OSU_IMPI51_ICC_64_run_2
State: Idle
Creds:  user:e889till  group:e889till  account:asccasc  class:pbatch  qos:normal
WallTime:  00:00:00 of 01:00:00
SubmitTime: Wed Jun 14 09:12:48
  (Time Queued Total:  5:06:19   Eligible:  5:06:19)

StartTime: Thu Jun 15 00:02:00
Total Requested Tasks:  1
Total Requested Nodes:  64
Partition: pbatch
Dedicated Resources Per Task: ignore
Node Access: SINGLEJOB
NodeCount: 64

SystemID:  quartz
SystemJID: 830063
IWD:        /g/g91/e889till/batcher
Executable: /g/g91/e889till/batcher/quartz.job

User Specified Partition List:    quartz
System Available Partition List:  quartz
Partition List: quartz
StartPriority: 1000147

NOTE: job can not run because there are higher priority jobs.

• Sometimes the squeue --start command can be used to get an estimate for job start times (and sometimes it can't). For example:

% sprio -l  |  sort -r -k 4,4
  JOBID  PARTITION  USER   PRIORITY        AGE  FAIRSHARE    JOBSIZE  PARTITION        QOS   NICE
 830811  pbatch   aaarg2    1321517          0     321517          0          0    1000000      0
 830760  pbatch    saaa4    1189400          6     189394          0          0    1000000      0
 830759  pbatch    saaa4    1189400          6     189394          0          0    1000000      0
 830776  pbatch    saaa4    1189397          3     189394          0          0    1000000      0
 830775  pbatch    ddwa9    1189397          3     189394          0          0    1000000      0
 830774  pbatch    rrra8    1189397          3     189394          0          0    1000000      0
...

 830366  pbatch  zhhhh49    1000127        127          0          0          0    1000000      0
 830365  pbatch  taffhh2    1000127        128          0          0          0    1000000      0
 830369  pbatch  zhhhh49    1000125        125          0          0          0    1000000      0
 830493  pbatch  wwwg102    1000102         86         16          0          0    1000000      0
 830576  pbatch  jjjtega    1000090         31         60          0          0    1000000      0
 830810  pbatch e988till    1000000          0          0          0          0    1000000      0
 829743  pbatch  yyymel2    1000000          0          0          0          0    1000000      0

• Sometimes the squeue --start command can be used to get an estimate for job start times (and sometimes it can't). For example:


  % squeue --start
    JOBID PARTITION     NAME     USER  ST           START_TIME  NODES NODELIST(REASON)
  2173337    pbatch  job.txt  is456i1  PD  2017-06-28T15:31:58      1 (Priority)
  2173338    pbatch  job.txt  is456i1  PD  2017-06-28T15:36:02      1 (Priority)
  2173339    pbatch  job.txt  is456i1  PD  2017-06-28T16:25:37      1 (Priority)
  2173340    pbatch  job.txt  is456i1  PD  2017-06-28T16:26:37      1 (Priority)
  2173341    pbatch  job.txt  is456i1  PD  2017-06-28T16:35:37      1 (Priority)
  ...
  2174947    pbatch S180_10p bbbmons3  PD  2017-07-03T19:28:33      1 (Priority)
  1247698    pdebug ppmd_IA6   vvvang  PD                  N/A      2 (PartitionNodeLimit)
  1863133    pbatch    runme   tttite  PD                  N/A      4 (PartitionNodeLimit)
  2156487    pbatch surge110 mrtrang1  PD                  N/A      1 (Dependency)
  2163499    pbatch      voh mrtrang1  PD                  N/A      1 (Dependency)


• You can also view the position of your job in the queue relative to other jobs. Either of the commands below will give you a list of idle jobs sorted by priority - highest priority is at the top of the list.


  sprio -l | sort -r -k 4,4
  mdiag -p -v | sort -r -k 4,4

• For example (some output deleted to fit screen):


  % sprio -l  |  sort -r -k 4,4
    JOBID  PARTITION  USER   PRIORITY        AGE  FAIRSHARE    JOBSIZE  PARTITION        QOS   NICE
   830811  pbatch   aaarg2    1321517          0     321517          0          0    1000000      0
   830760  pbatch    saaa4    1189400          6     189394          0          0    1000000      0
   830759  pbatch    saaa4    1189400          6     189394          0          0    1000000      0
   830776  pbatch    saaa4    1189397          3     189394          0          0    1000000      0
   830775  pbatch    ddwa9    1189397          3     189394          0          0    1000000      0
   830774  pbatch    rrra8    1189397          3     189394          0          0    1000000      0
  ...

   830366  pbatch  zhhhh49    1000127        127          0          0          0    1000000      0
   830365  pbatch  taffhh2    1000127        128          0          0          0    1000000      0
   830369  pbatch  zhhhh49    1000125        125          0          0          0    1000000      0
   830493  pbatch  wwwg102    1000102         86         16          0          0    1000000      0
   830576  pbatch  jjjtega    1000090         31         60          0          0    1000000      0
   830810  pbatch e988till    1000000          0          0          0          0    1000000      0
   829743  pbatch  yyymel2    1000000          0          0          0          0    1000000      0

Parallel Jobs and the srun Command

srun Command

• The Slurm srun command is required to launch parallel jobs - both batch and interactive.
• It should also be used to launch serial jobs in the pdebug and other interactive queues.
• Syntax:

  srun   [option list]   [executable]   [args]

  Note that srun options must precede your executable.

• Interactive use example, from the login node command line. Specifies 2 nodes (-N), 72 tasks (-n) and the interactive pdebug partition (-p):

% srun -N2 -n72 -ppdebug myexe

• Batch use example requesting 16 nodes and 576 tasks (assumes nodes have 36 cores):

#!/bin/tcsh
#SBATCH -N 16
#SBATCH -t 2:00:00
#SBATCH -p pbatch

# Run info and srun job launch
cd /p/luster1/joeuser/par_solve
srun -n576 a.out
echo 'Done'

% sbatch myjobscript

• Primary differences between batch and interactive usage:

• More Examples:


  srun -n64 -ppdebug my_app

  64 process job run interactively in pdebug partition

  srun -N64 -n512 my_threaded_app

  512 process job using 64 nodes. Assumes pbatch partition.

  srun -N4 -n16 -c4 my_threaded_app

  4 node, 16 process job with 4 cores (threads) per process. Assumes pbatch partition.

  srun -N8 my_app

  8 node job with a default value of one task per node (8 tasks). Assumes pbatch partition.

  srun -n128 -o my_app.out my_app

  128 process job that redirects stdout to file my_app.out. Assumes pbatch partition.

  srun -n32 -ppdebug -i my.inp my_app

  32 process interactive job; each process accepts input from a file called my.inp instead of stdin

Task Distribution and Binding for Batch Jobs:

• The LC default is for the scheduler to distribute tasks as evenly as possible across the allocated nodes.
• Examples: if 4 nodes (with 16 cores each) are requested by a batch job using:

#SBATCH -N 4

• then the behavior of srun -N and -n flags will be as follows:

• Additionally, tasks are bound to specific cores to promote better cache utilization.
• Threads associated with a task are likewise bound to the same cores.

srun Options

• srun is a powerful command with many (> 100 options) affecting a wide range of job parameters.
• For example:
  • Accounting
  • Number and placement of processes/threads
  • Process/thread binding
  • Job resource requirements; dependencies
  • Mail notification options
  • Input, output options
  • Time limits
  • Checkpoint, restart options
  • and much more....
• Some srun options may be set via  Slurm environment variables. For example, SLURM_NNODES behaves like the -N option.
• See the srun man page for details.

Parallel Output

• Please use a parallel file system for parallel I/O. Lustre parallel file systems are mounted under /p/lustre#.
• It's a good idea to launch parallel jobs from a parallel file system even if they aren't doing much I/O. A core dump on a parallel job can hang a non-parallel file system easily.

Running Multiple Jobs From a Single Job Script

Motivation

• Combining multiple jobs into a single job script means there is only one wait in the queue for the entire job group.

Sequential

• If one job is dependent upon the completion of a previous job, then this method can be used.
• When you submit your job script, be sure to specify enough wall clock time to cover all of the included jobs.
• Individual jobs can vary in the number of nodes used, provided none of them exceed the number of nodes allocated to your encompassing job script.

Example below. Assumes 36 cores per node: 16 nodes * 36 cores = 576 tasks max.

#!/bin/tcsh
#SBATCH -N 16
#SBATCH -t 12:00:00

srun -n576 myjob1
srun -n576 myjob2
srun -N16 -n288 myjob3
srun -N12 -n432 myjob4

Simultaneous

• This method can be used if there are no dependencies between jobs.
• When you submit your job script, be sure to specify enough nodes to cover all of the included jobs.
• You can vary the number of nodes used by individual jobs as long as the aggregate number of nodes doesn't exceed the number of nodes allocated to your encompassing job script.
• Important to remember:
  • Put each individual job "in the background" using an ampersand - otherwise they will run sequentially.
  • Include a wait statement to ensure the job script doesn't terminate prematurely.
  • With your srun commands, be sure to explicitly specify how many nodes each job requires - or else the scheduler will think each job has access to all nodes, with possible complications.

Example 1: every job uses the same number of nodes/tasks.

Assumes 36 cores per node: 16 nodes * 36 cores = 576 tasks max.

#!/bin/tcsh
#SBATCH -N 16
#SBATCH -t 12:00:00

srun -N4 -n144 myjob1 &
srun -N4 -n144 myjob2 &
srun -N4 -n144 myjob3 &
srun -N4 -n144 myjob4 &

wait

• Example 2: jobs differ in the number of nodes/tasks used.

  Assumes 36 cores per node: 16 nodes * 36 cores = 576 tasks max.

#!/bin/tcsh
#SBATCH -N 16
#SBATCH -t 12:00:00

srun -N4 -n144 myjob1 &
srun -N2 -n72 myjob2 &
srun -N8 -n8 myjob3 &
srun -N2 -n16 myjob4 &

wait

Interactive Jobs

Interactive Jobs - Slurm

• Refers to batch jobs that you launch and interact with real-time from the command line.
• Don't use Login Nodes (in most cases):
  • Login nodes are shared, oftentimes by many users.
  • Intended for non-cpu intensive interactive tasks, such as editing, working with files, running GUIs, browsers, debuggers, etc.
  • Not intended for running CPU-intensive production jobs, which can negatively impact other users.
• Most clusters have a pdebug partition of compute nodes dedicated to small, short, interactive jobs. Another common interactive partition is pvis.
• There are several ways to run interactive jobs on LC's Linux clusters, as described below.
• Method 1: Use srun on a login node specifying compute nodes in the pdebug or other interactive partition.
  • To view the partitions on a cluster use the sinfo -s command. It shows which partitions are configured, their time limit and how the nodes are currently being used (Allocated / Idle / Other / Total). For example, on Quartz note the pdebug partition:


    % sinfo -s
    PARTITION AVAIL  TIMELIMIT   NODES(A/I/O/T)  NODELIST
    pdebug       up      30:00       20/26/0/46  quartz[1-46]
    pbatch*      up 1-00:00:00  2865/52/13/2930  quartz[47-186,193-378,...,2887-3072]
    pall       down   infinite  2885/78/13/2976  quartz[1-186,193-378,...,2887-3072]


  • Then use the srun command to run the job on compute nodes in pdebug. For example, to run your executable on 2 pdebug nodes using 16 tasks:


    % srun -p pdebug -N 2 -n 16 myexe

• Method 2: Use salloc to acquire compute nodes for interactive use.
  • On a login node, request an allocation of compute nodes, and optionally the partition to acquire them from. The default is usually pbatch, but small short jobs usually get better turnaround time in pdebug. For example, to request 2 pdebug compute nodes:


    % salloc -p pdebug -N 2
    salloc: Pending job allocation 3891090
    salloc: job 3891090 queued and waiting for resources
    salloc: job 3891090 has been allocated resources
    salloc: Granted job allocation 3891090

  • After your allocation is granted, you will be placed on the first node of the allocation. You can verify this as follows:


    % squeue -u joeuser
      JOBID PARTITION     NAME      USER ST       TIME  NODES NODELIST(REASON)
    3891090    pdebug       sh   joeuser  R       0:07      2 quartz[1-2]
    % hostname
    quartz1

  • You can now run whatever you'd like interactively on your job's compute nodes.
• Method 3: Use sxterm / mxterm to acquire compute nodes for interactive use.
  • Similar to salloc, but different because it will actually "behind the scenes" create a batch job for your request, queue it and then when it starts to run on a compute node, pop open an xterm window on your desktop.
  • For example requesting 1 node / 1 task / for 30 minutes in the pdebug partition:


    % sxterm 1 1 30 -p pdebug
    Submitted batch job 3048379

  • Wait until the xterm window appears on your desktop. You will be on the first node of your job's allocation and can run whatever you'd like interactively.
  • There's no man page - just invoke "sxterm" with no options and a usage message will display.
• Method 4: Submit a batch job and then rsh/ssh to the compute nodes where it is running.
  • You can submit a batch job (covered next) that really doesn't do anything except "sleep."
  • The squeue command can be used to show when and where your job is running.
  • After it starts running, you can rsh or ssh to any of its compute nodes.
  • Once on a compute node, you can run whatever you'd like interactively.
• Important usage notes about the pdebug partition:
  • As the name pdebug implies, interactive jobs should be short, small debugging jobs, not production runs.
  • Shorter time limit
  • Fewer number of nodes permitted
  • There is usually a "good neighbor" policy in effect - don't monopolize the queue or setup streams of jobs

More Information - LC Documentation and Tutorials

• Slurm Tutorial - hpc.llnl.gov/banks-jobs/running-jobs/slurm-and-moab
• Livermore Computing Resources and Environment - hpc.llnl.gov/documentation/tutorials/livermore-computing-resources-and-environment
• Batch System Cross Reference Guide - hpc.llnl.gov/banks-jobs/running-jobs/batch-system-cross-reference-guides
